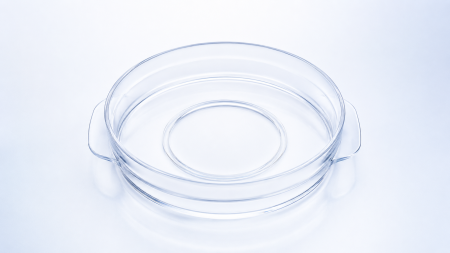

Synga View Dish for polarised light, OD60

Glass-bottom dish optimized for non-invasive live-cell imaging in polarized light (e.g. Polscope/Oosight systems).
The central optical window is precision borosilicate glass, 30 mm diameter, 0.17 ± 0.005 mm thickness (No. 1.5H coverslip equivalent) with low intrinsic birefringence for high-contrast spindle imaging.

• Overall dish diameter: 60 mm
• Outer support ring with co-planar plastic bottom: maintains the same focal plane as the glass for stable micromanipulation
• Application: assessment of oocyte maturity, meiotic spindle visualization, and zona pellucida birefringence
• Working volume accommodates microcapillaries at 25°, 30° and 35° injection angles for ICSI and related procedures
• Compatible with inverted microscopes, heated stages and IVF workstations

Why polarized-light imaging?

• Non-invasive assessment of living oocytes
• Visualization of the meiotic spindle
• Evaluation of zona pellucida birefringence
• Compatible with routine ICSI workflow
