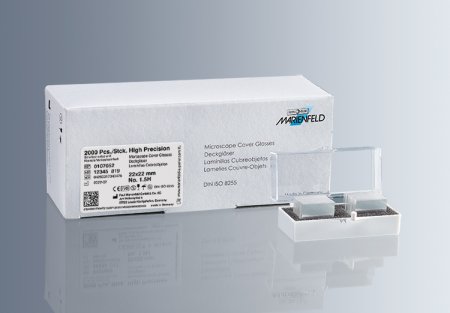

Cover glasses No. 1.5H, 25 mm Ø, 10 x 100 pcs./two-part-box

10 x 100 pcs

01.070.52-neu
  • Price without VAT: 591,30 €
  • Price including VAT: 715,47 €
591,30 €

Modern high-performance microscope objectives are designed to be used with cover glasses of a thickness of 170 μm. The quality of the cover glass, in particular the compliance with the nominal thickness, has thereby a crucial impact on the imaging quality. Variations of thickness reduce the image contrast and result in image defects, most notably in spherical aberration.

We produce high-precision cover glasses with thickness No. 1.5H featuring an exceptionally accurate thickness of 170 μm ± 5 μm. This new generation of cover glasses are highly recommended for objectives with high numerical aperture and high resolution, for example:

  • dry objectives: N.A. > 0.7
  • objectives for water immersion: N.A. > 1.0
  • objectives for glycerol immersion: N.A. > 1.2
  • objectives for oil immersion: N.A. > 1.3
  • made of chemically resistant borosilicate glass D 263® M of the first hydrolytic class
  • absolutely colourless, perfectly clear, suitable for fluorescence microscopy
  • in compliance with DIN ISO 8255
  • thickness No. 1.5H (0.170 mm ± 0.005 mm)
  • for applications according to EU regulation 2017/746 on in vitro diagnostic medical devices (IVDR), with CE-mark and batch number for comprehensive information and traceability

Hinged lid boxes containing 200 or 100 pieces
0107032 18 x 18 mm 25 x 2000 2000
0107052 22 x 22 mm 25 x 2000 2000
0107172 24 x 32 mm 25 x 1000 1000
0107222 24 x 50 mm 25 x 1000 1000
0107242 24 x 60 mm 25 x 1000 1000

Two-part boxes containing 100 pieces
0117500 10 mm Ø 150 x 1000 1000
0117520 12 mm Ø 150 x 1000 1000
0117530 13 mm Ø 150 x 1000 1000
0117550 15 mm Ø 100 x 1000 1000
0117580 18 mm Ø 100 x 1000 1000
0117640 24 mm Ø 75 x 1000 1000
0117650 25 mm Ø 75 x 1000 1000
0117700 30 mm Ø in cardboard boxes of 100 pieces 1000
