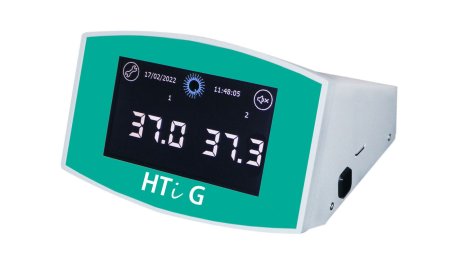

Control unit HTiG for heated glass inserts

Control unit HTiG for one heated glass insert and a heated microscope stage or warming plate (two channels)

Allows two devices to be connected: the heated glass insert and a heated microscope stage or a warming plate. An innovative heating technology provides highly accurate temperature control of the glass.

Product features

• Freely adjustable temperature range
• Control accuracy: ± 0.1°C
• Touchscreen 4.3", color
• Temperature display in °C or °F
• Data logging and readout via SD card (included)
• Optic/acoustic alarm in case of temperature deviation
• Alarm limits can be set separately for each connected device
• Power output: 160 W max.
• Dimensions: 155 x 100 x 150 mm
• Weight: approx. 3 kg
