Astec IBIS-SG, Time Lapse for GPS Dish

Time Lapse Blastocyst Incubator, 230V w/Phototunes SW

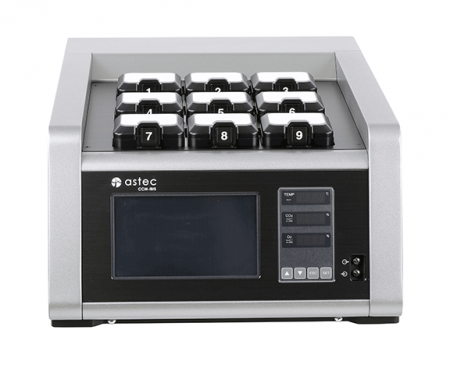

Astec CCM IBIS, Time Lapse Incubator
  • Manufacturer: Astec Co., Ltd.
  • Ref No.: CCM-iBIS-SG
  • Availability: Soon available
  • Dimensions: (W)382mm x (D)590mm x (H)219mm
Price on Request
Number of settable dishes 9 (25-Well EmbryoGrid)
Inside-chamber dimensions 62 mm (W) x 65 mm (D) x 17 mm (H)
Capacity: Approx.69 ml
Humidification method No humidification
Power supply 110V-120 VAC 50/60Hz 3A or 220-240 VAC 50/60Hz
1.5A (Voltage fluctuation : within ±10%)
Weight of the main body Approx. 30kg

Temperature control

Temperature control method Digital PID method, independent control of each incubation chamber
Operational temperature range 24ºC to 28ºC
Temperature control range 36ºC to 39ºC
Temperature fluctuation range ±0.1ºC (Room temperature: 26ºC)
Temperature distribution ±0.1ºC (Room temperature: 26ºC)
Main Heater Silicon rubber heater

Gas specifications

CO2 sensor Infrared CO2 sensor
CO2 control method Duty control
CO2 control range 0 to 20.0%
CO2 fluctuation range ±0.1%
O2 sensor Ceramic O2 sensor
O2 control method Duty control
O2 control range 2.0 to 18.0%
O2 fluctuation range ±0.5%

XY stage

Shift range ±105 mm (x-axis), ±140 mm (y-axis)
Resolution 1μm/step
Maximum speed 40mm/sec
Repetitive-positioning accuracy Within ±0.5 μm

Z stage

Shift range ±5mm
Resolution 1 μm/step (Half)
Maximum speed 10mm/sec
Repetitive-positioning accuracy Within ±0.2 μm

Optical system

Camera 1.3-million pixel CCD camera, 4.86 mm x 3.62 mm imaging size
Objective lens Lens (10 x) for biological microscopes
Light source for illumination Red LED (Peak wavelength: 623 nm)
Image save format JPEG format
